High-Performance
SSL Resonant Vibrating Conveyor
Discover UHM’s SSL Resonant Vibrating Conveyor. Features a dual-mass resonant system for low-noise, long-distance conveying, and easy installation on steel structures.
RELIABLE LONG-DISTANCE CONVEYING SOLUTIONS
SSL Resonant
Vibrating Conveyor

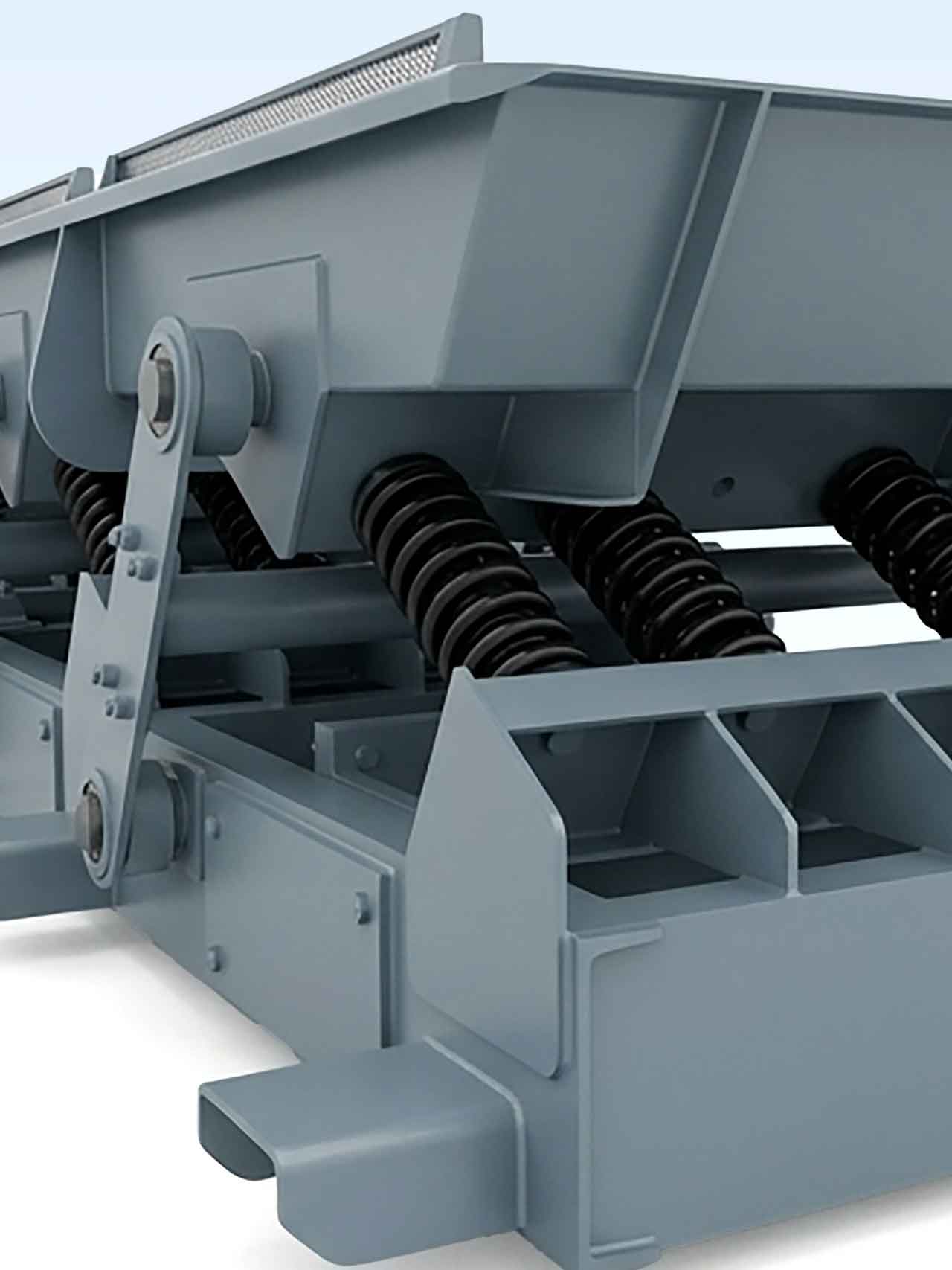

The working principle of the SSL Resonant Vibrating Conveyor is based on a dual-mass resonant structure, prioritizing high structural rigidity and a low-profile design. During operation, it provides high conveying efficiency through a simplified mechanical layout that is easy to install and maintain.
While common conveyors can be bulky, the SSL model’s compact design and low height make it ideal for workshops with limited overhead space. Similar to our PSL Fully Balanced model, it utilizes resonant technology to reduce energy consumption while significantly improving the working environment.
UHM SSL conveyors stand out in long-distance material handling due to their technical simplicity, durability, and adaptability to constrained layouts.
Note: This equipment is the ideal choice for factories seeking a balance between high cost-performance and ease of maintenance.
How Does It Work?

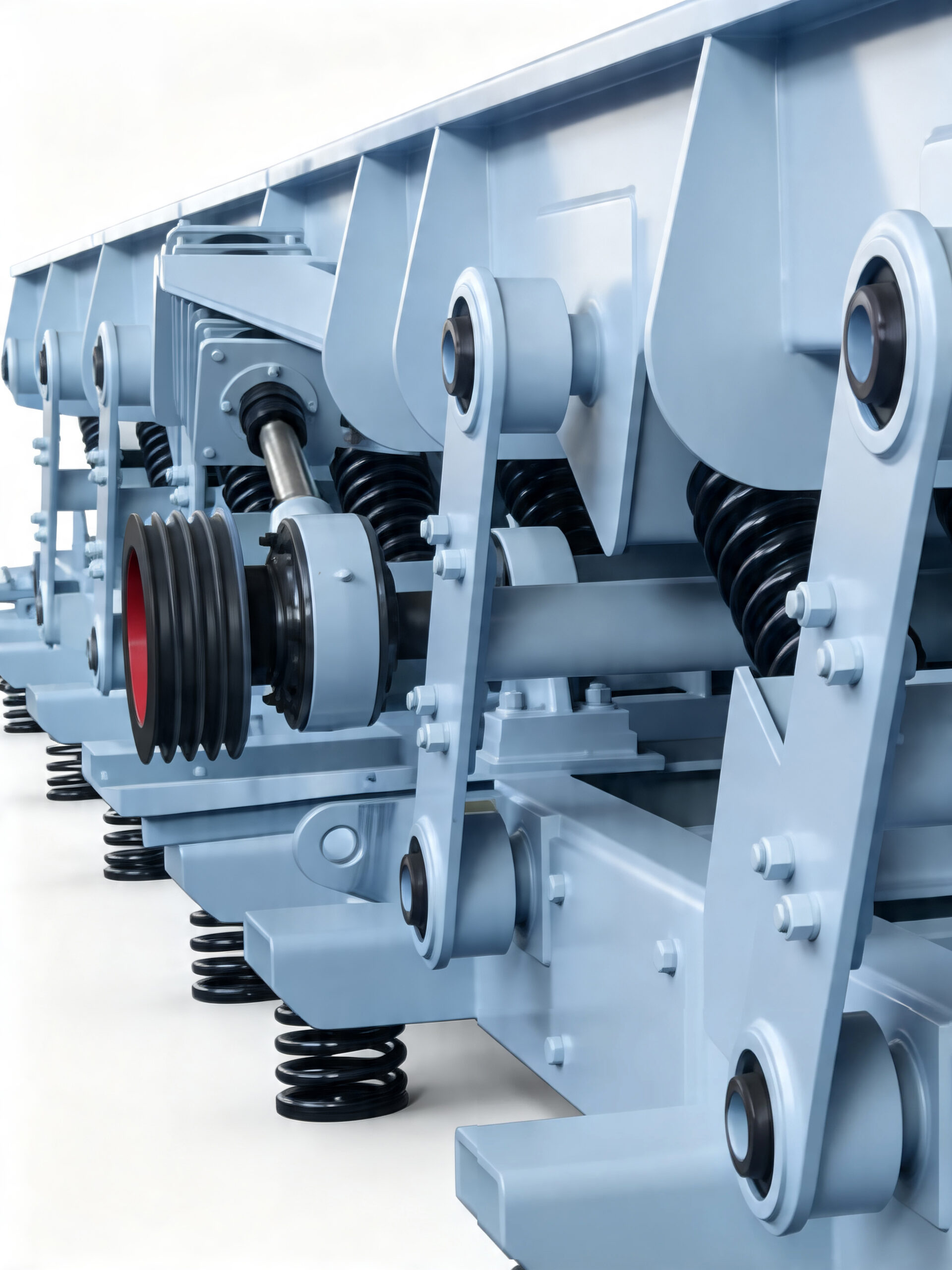

The working principle of the SSL resonant vibratory conveyor is that the conveying trough and the equipment base frame are connected by resonant springs, forming a precision-tuned resonant system. During operation, the motor and eccentric linkage excitation system transmit Vibrating force to the conveying trough through an elastic linkage system, inducing resonance in the system.
Common equipment is difficult to adjust for different working conditions, but the SSL conveyor allows for flexible adjustment of the system’s tuning value by increasing or decreasing the base frame weight and adjusting spring stiffness. This flexibility enables it to achieve the optimal working state for materials of different densities and conveying capacities, ensuring a stable and efficient conveying process.
The flexible tuning technology, stable near-resonant working state, and efficient power transmission performance of the SSL conveyor make it stand out in complex industrial applications.
Note: In the video, the system rapidly adapts to changes in material density by fine-tuning the spring stiffness, maintaining a constant conveying flow rate.
What Are Its Uses?
The SSL resonant vibrating conveyor is widely used in material handling processes that require long-distance continuous conveying and have environmental protection requirements. It can not only be used as an open-type conveying device but can also be customized into a fully sealed structural trough according to needs.
Common conveying equipment struggles to balance efficiency with cleanliness, but the SSL conveyor can adopt a sealed structural trough to achieve clean conveying while completely eliminating dust dispersion during efficient displacement. This makes it the preferred choice for production lines handling fine powders or those with strict requirements for air quality.
The clean conveying solution, long-distance layout flexibility, and multi-industry adaptability of the UHM SSL conveyor make it stand out in the construction of eco-friendly factories.
Note: The sealed trough design effectively prevents material cross-contamination, making it an ideal configuration for the chemical and fine processing industries.
FAQ & VOTERS
Conveying Characteristics
The video shows that when materials pass through the screening area during conveying, large particles and fine materials are precisely separated; the entire process is quiet and efficient.
The conveying characteristic of the SSL resonant vibrating conveyor is the integration of “conveying” and “grading,” realizing multi-functional integration in one unit. During the material flow process, the equipment maintains extremely low operating energy consumption and environmental noise.
Common single-function conveying equipment has limited utility, but the SSL conveyor can achieve precise material grading while conveying by installing screens within the trough. In addition, its noise level is strictly controlled below 75dB, providing a much friendlier working environment for operators.
The high energy efficiency, low-noise operation, and integrated grading function of the SSL conveyor make it stand out in multi-functional production lines.
What Are the Advantages?
The special elastic hinge structure demonstrated excellent resilience in the video, showing no overheating or deformation even under continuous high-load operation.
The advantage of the SSL resonant vibrating conveyor lies in its excellent structural reliability, especially the use of high-strength steel plate guide support linkages. This special linkage structure connects the upper and lower masses through elastic hinges, ensuring sturdiness and reliability.
Common linkage connections are prone to fatigue and damage, but the elastic hinge connection method of the SSL conveyor is not only sturdy and reliable but also greatly extends the service life of the equipment. Furthermore, the simple maintenance logic reduces the enterprise’s follow-up operational costs.
The ultra-long service life, sturdy hinge design, and extremely low maintenance frequency of the UHM SSL conveyor make it stand out in heavy-load industrial applications.
Applications

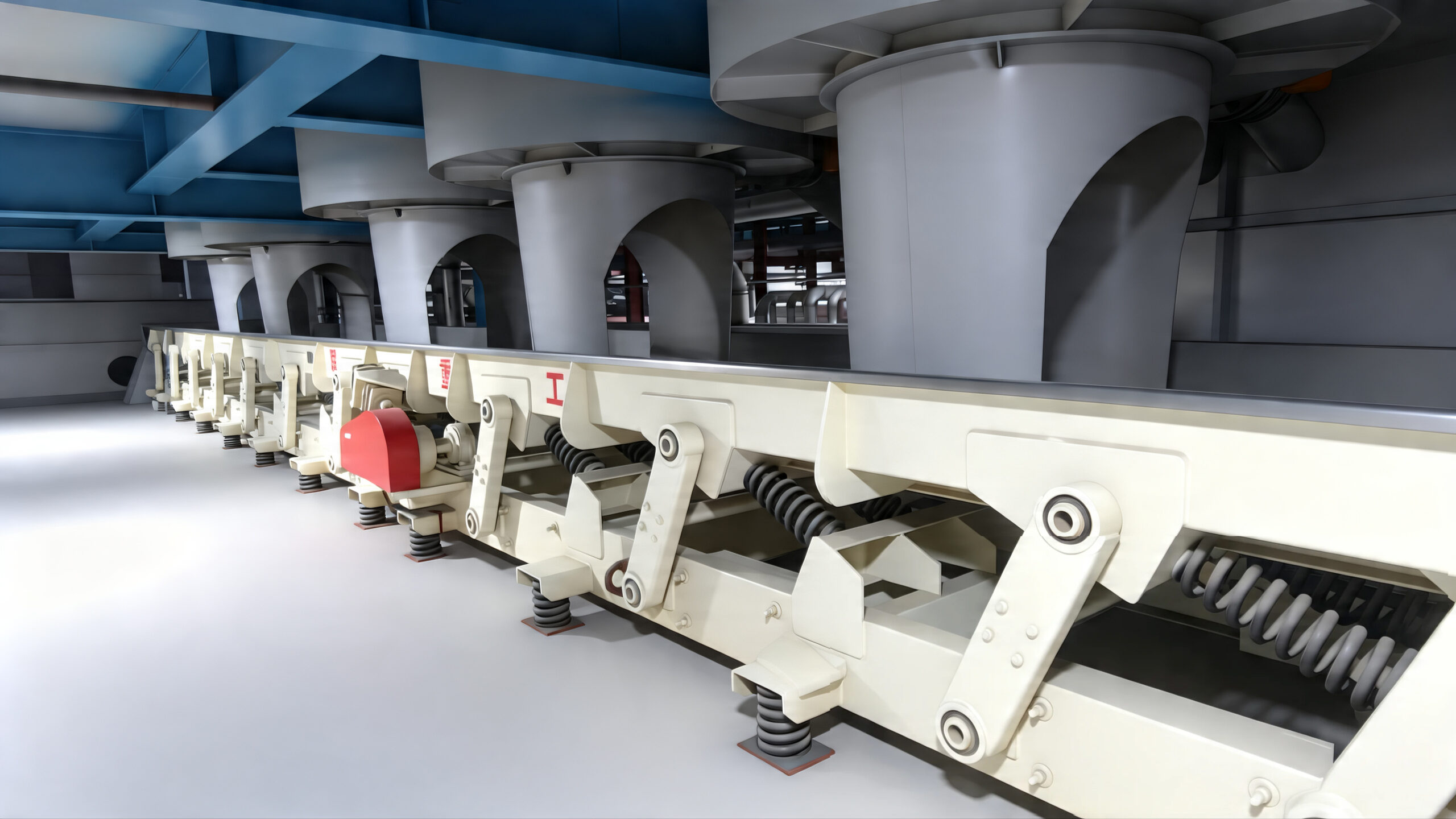

The application scenarios for the SSL resonant vibrating conveyor are very flexible, with no special requirements for the installation foundation. It is not only suitable for ground-level installation but is also an ideal partner for high-rise workshops and complex steel structure platforms.
Common vibrating equipment has high-strength requirements for building foundations, but because the vibrating forces of the SSL conveyor’s trough and base frame basically cancel each other out, the reaction force transmitted to the foundation is extremely small. Therefore, this model of conveyor is very suitable for installation on floor slabs or existing steel structure supports without the need for additional reinforcement projects.
UHM’s industry-leading vibration reduction technology, the structural versatility of the SSL series, and its low requirements for the installation environment make it stand out in old factory renovations and new high-rise factory projects.
